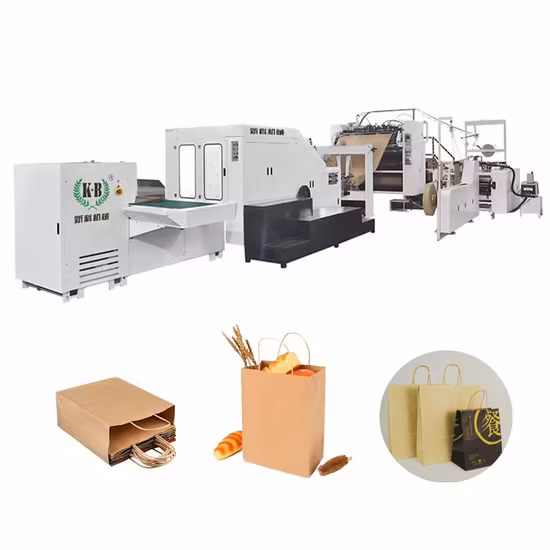

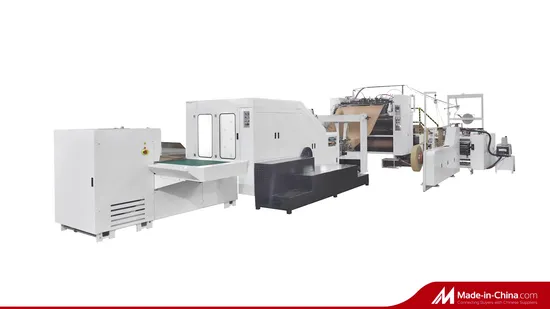

Fully Automatic Square Bottom Paper Bag Making Machine with Twisted Handle Inline

Overview

Basic Info.

Model NO.	XKFD-330T
Bag Type	Shopping Bag
Characteristic	Automatic Glue
Computerized	Computerized
Speed	High
Width	220-330
Size and Shape	12600*5880*3150
Long	225-370
Weight	13500kg
Material	Paper
Usage	Shopping Bag, Leisure Food Bag, Bread Bags, Fruit Bag
Brand	Xinke
Patch Paper Roll Width	80-100mm
Application	Food Packaging, Shopping Bag
Bag Length	225-370mm
Paper Thickness	60-160GSM
Handle Height	100mm
Roll Paper Diameter	1200mm
Patch Paper Thickness	100-135GSM
PLC	Mitsubishi
Keywords	Paper Bag Making Machine
Bag Width	220-330mm
Function	Paper Bag Producing
Automatic	Computerlized
Servo Motor	Mitsubishi
After-Sales Service Provided	Field Installation, Commissioning and Training
Transport Package	Stretch Film Package and Container
Specification	speed: 30-120pcs/min
Trademark	Xinke
Origin	China
HS Code	8441200000
Production Capacity	200sets/Year

Packaging & Delivery

Package Size 20.00cm * 20.00cm * 10.00cm Package Gross Weight 5.000kg

Product Description

Fully Automatic High Speed Square Bottom Paper Bag Making Machine with Twisted Handle Inline

Product Description

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts Japan imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.

Product Parameters

Model	XKFD-330T	XKFD-450T	XKFD-540T
Cutting length	270-530mm	270-530mm	400-770mm
Cutting length(Ful)	270-430mm	270-430mm	400-670mm
Bag width	150-330mm	220-450mm	250-540mm
Bag width(Ful)	220-330mm	290-450mm	320-540mm
Bag Length	225-470	225-470	320-680
Bag Length(Ful)	225-370mm	225-370mm	320-580mm
Bottom width	60-180mm	80-220mm	120-260mm
Paper Thickness	60-160g/m2	80-160g/m2	90-160g/m2
Paper Thickness(Ful)	60-160g/m2	80-160g/m2	90-160/m2
Paper roll width	440-1050mm	630-1370mm	770-1630mm
Paper roll width(Ful)	585-1050mm	770-1370mm	910-1630mm
Roll paper diameter	φ1200mm	φ1200mm	φ1200mm
Patch paper thickness	100-135g/m2	100-135g/m2	100-135g/m"
Machine Speed	30-200bags/min	30-200bags/min	30-200bags/min
Power Supply	380V 3Phase 35KW	380V 3Phase 35KW	380V3Phase 39KW
Machine weight	12000kg	13500kg	15000kg
Machine size	14000x5800x2400mm	14000x6000x2400mm	14000x6500x2400mm

Machine Details

The twisted handle inline device: produce the twisted rope handle with the paper bags directly.The bag forming part in the paper bag machine.The finished bag delivery part:Horizonal delivery or bucket delivery way for choose.Use Taiwan WEINVIEW touch screen human-computer interface, making the machine easy to operate and control.Delivery The Handle

Sample Bags

Producing Process

Related Products

Company Profile

Xinke Machinery was founded in 2000, it has been 20 years since the present, it has a rapidly developing during this period become as one of China outstanding packaging machinery manufacturers. Our success key point is professional technical team has more than 20 years experience in paper bag machinery manufacturer, we can design and produce the paper bag machine by ourselves to keep the machines up to date.
Cooperating with famous brand, like Sick, Mitsubishi and so on. We provide customers a 360˚ after-service, from start-up and installation, to preventive maintenance. Thus, the quality of your productions can be promise with high quality equipment, warranty and post-warranty service.
We had export and import license, CE for European Market and ISO for local market, we export to more over 1000 companies in 100 countries in the world.
We can be your trusted partner, Xinke Machinery Co., Ltd.

After Sales Service

1.Quality Commitment: one year guarranty,Lifelong maintenance, Vulnerable parts are provided free of charge within 12 months.2. After-sales Service: 24hours online to help customer solve problem.3. Operation Guide: after the customer receives the goods, the engineer will guide the installation throughout.4. Machine Parts: all machine parts are imported from famous imported brands, which are convenient for customers to repair and buy by themselves.

FAQ

Q: Where are your factories located? May I have a visit ? A: First of all,warmly welcome! Our factory located in Ruian city, Zhejiang Province Q: Do you have machines in stock to sell? A: No,we according to customers' requirements to manufacture the machine. Q: How is the quality of your machine? A: We have 20 years experience of manufacture the machine, choose the famous brand parts to produce the machine, the quality can be guaranteed. Q: What about the lead time for mass production? A: Honestly, it depends on the order quantity and the machine type. Normally, the produce period is 35-90days. Q: What is your terms of delivery? A: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
